Key Features:
Supports single-sided and dual-sided lamination
Integrated card flattener (debower) for optimal card quality
Lamination speed: up to 215 cards/hour (single-sided)
Compatible with a wide range of laminates, including clear, patch, and holographic overlays
Infrared connectivity with Primacy and Primacy 2 printers; USB connection for standalone mode (USB cable sold separately)
LED control panel for easy operation and status monitoring
3-year manufacturer’s warranty with an optional 1-year extension

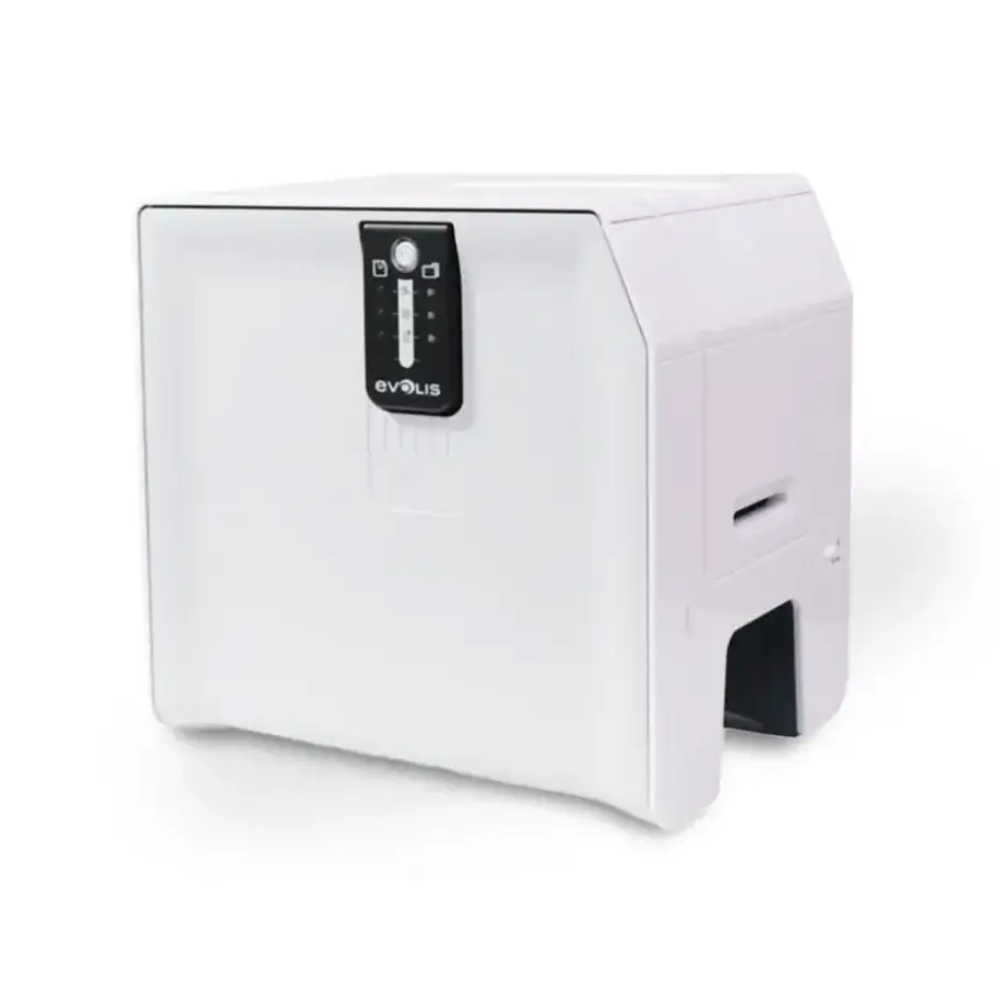

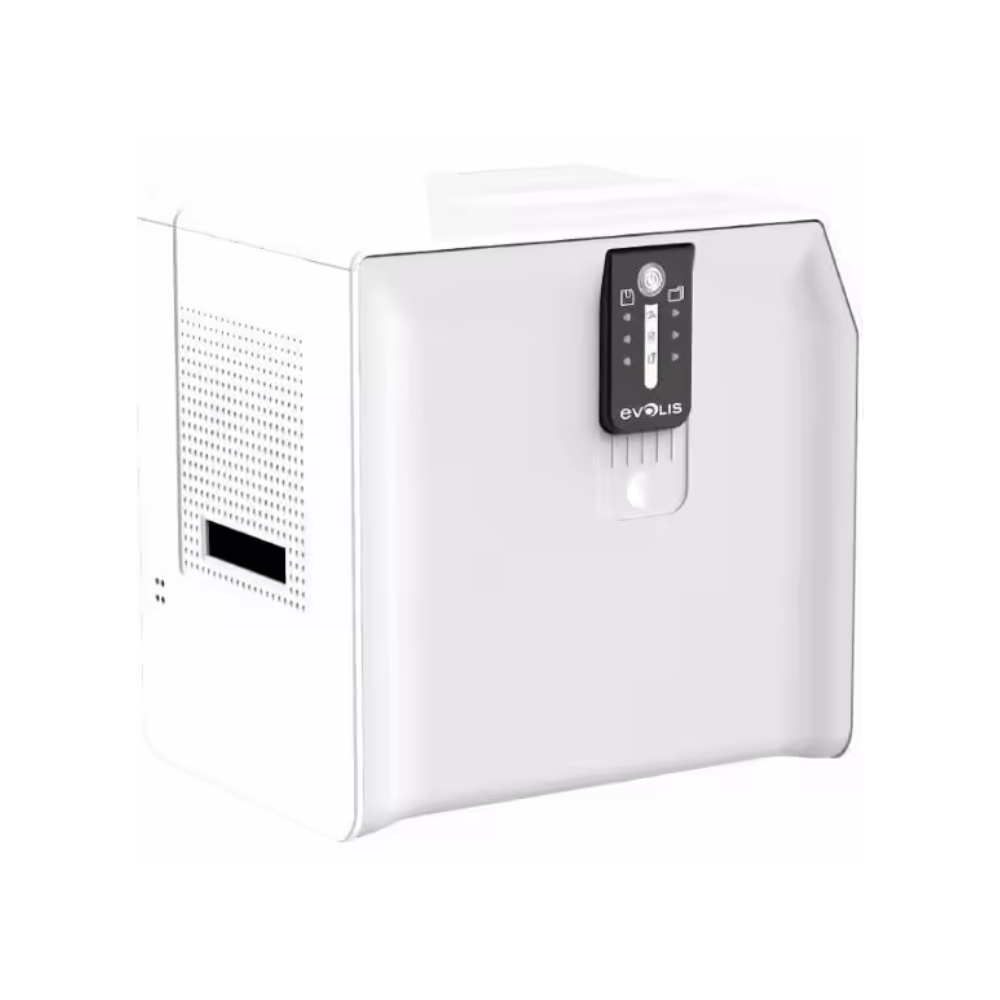

The Evolis S10212 Card Lamination Module (CLM) is a genuine accessory designed to enhance the durability and security of cards produced by Evolis Primacy and Primacy 2 printers. By applying a protective laminate layer, this module safeguards cards against wear, fading, and tampering, making it ideal for high-security applications such as government IDs, driver’s licenses, and access control badges.
Specifications:
Brand: Evolis
Part Number: S10212
Product Type: Card Lamination Module
Compatibility: Evolis Primacy, Primacy 2, or standalone operation
Card Types Supported: PVC, composite PVC, PET, polycarbonate, special varnished cards
Card Format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)
Card Thickness: 30 to 40 mil (0.76 to 1.00 mm)
Feeder Capacity: 100 cards (0.76 mm – 30 mil)
Output Hopper Capacity: 100 cards (0.76 mm – 30 mil)
Reject Tray Capacity: 100 cards (0.76 mm – 30 mil)
Connectivity: Infrared (for Primacy/Primacy 2); USB for standalone mode
Dimensions: 269 x 205 x 370 mm
Weight: 6 kg
Installation:

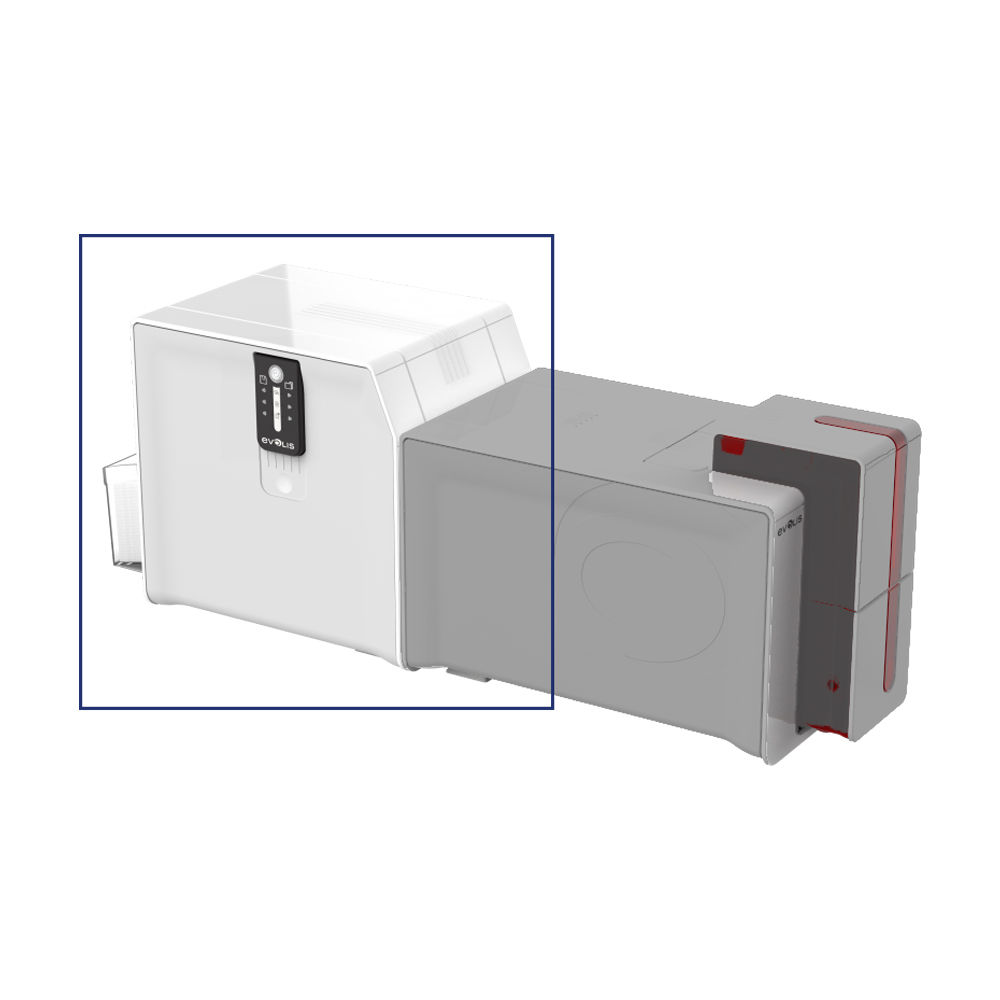

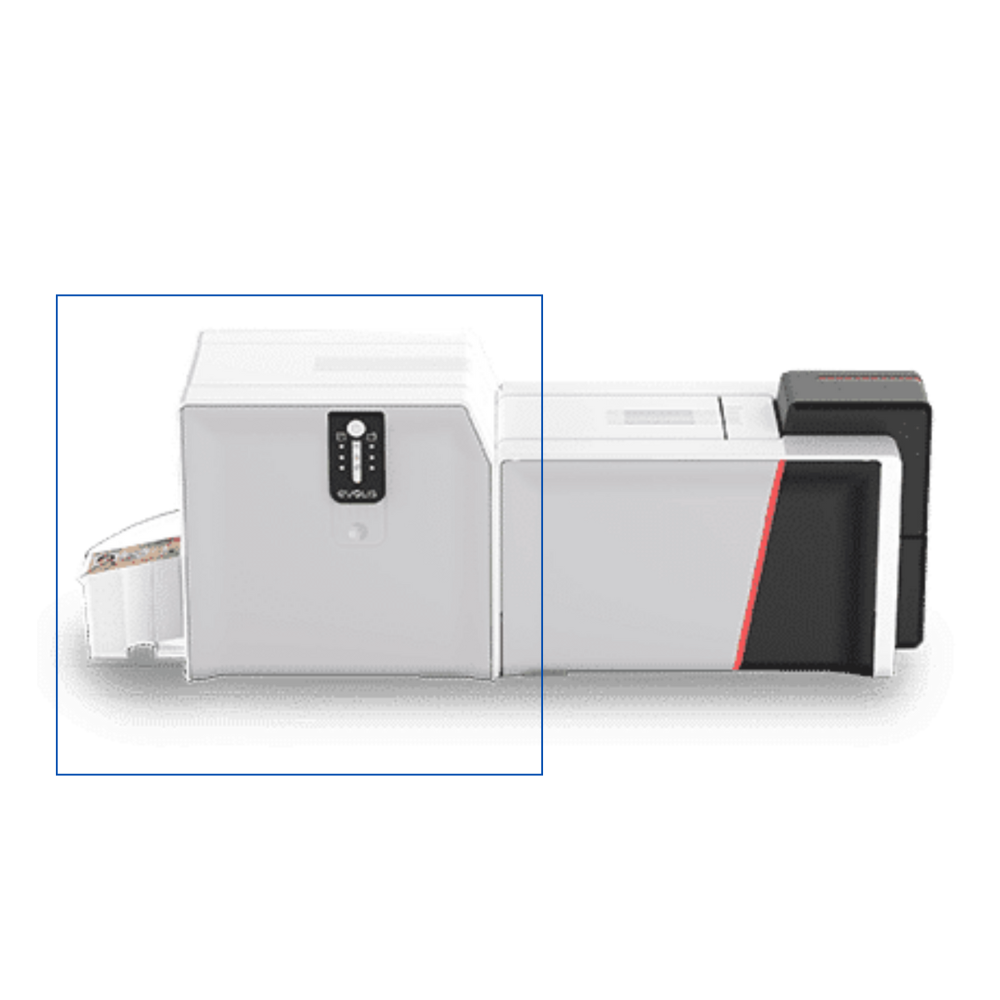

The CLM connects seamlessly to Primacy and Primacy 2 printers via infrared, forming an integrated system without the need for additional cables. For standalone operation, a USB connection is available (USB cable sold separately). The module features an LED control panel for intuitive operation, providing real-time status updates and alerts.
How to Connect the Laminator
