Made in France

Technical Specifications
GENERAL FEATURES

• Single or double-sided print module
• Perfect printing of the edges
• 600 dpi print head (23.6 dots/mm)
• Print quality optimization via color profile
• User interface: 3.5 inch color LCD touchscreen

PRINT SPEED

• Single-sided (YMCK): 150 cards/hour
• Double-sided (YMCKK): 100 cards/hour

CARD MANAGEMENT AND SPECIFICATIONS

• Feeder capacity: 200 cards (0.76 mm – 30 mil)
• Hopper capacity: 100 cards (0.76 mm – 30 mil)
• Reject hopper capacity: 10 cards (0.76 mm – 30 mil)
• Card types: PVC cards, composite PVC cards, PET cards,
PC cards, ABS cards

PORTS / CONNECTIVITY

• USB (2.0), cable supplied
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

EVOLIS HIGH TRUST® RIBBONS

To maximize the quality and lifetime of the printed cards,
the service life of the print head, and the overall reliability
of your printer, use Evolis High Trust® ribbons.
• Ribbon capacities:
– Transparent transfer film: 1200 prints/roll
– YMCK ribbon: 600 prints/roll
– YMCKK ribbon: 600 prints/roll
– YMCKI ribbon (for smart cards, magnetic strip cards,
and signature strips): 600 prints/roll
– YMCKKI ribbon (for smart cards, magnetic strip cards,
and signature strips): 400 prints/roll
– YMCFK ribbon (F = UV ink): 600 prints/roll
List of ribbons available at www.evolis.com

LAMINATION (OPTION)

• Standard single and double-sided
• Wide range of lamination films: patches and varnishes with
or without holograms
List of laminates available at www.evolis.com

OPTIONS INTEGRATED ON SITE

∙ Double-sided activation key
∙ Encoding modules
∙ Lamination module
SECURITY

• Socket for Kensington® security lock
• Module for locking access to blank cards, ribbon,
and film (optional)
• Erasure of sensitive data from the printer memory

ENCODING MODULES

• ISO 7811 magnetic strip encoder
• Contact smart card encoders
• Contactless smart card encoders
• Dual smart card encoders (contact/contactless)
• Options can be combined
• On-site or factory fitting

SOFTWARE

∙ CardPresso XXS for designing and printing badges.
OS compatibility details available at www.cardpresso.com
∙ Evolis Premium Suite 2 for complete printer management
(drivers, printer administration and settings,
user notifications).
Compatible with Windows and Mac OS.
∙ Evolis Print Service (print plugin) for printing from Android
and iOS mobile devices.
OS compatibility details available at www.evolis.com
∙ Evolis SDK (Software Development Kit) for complete
management and optimal integration of Evolis printers in IT
applications and systems

OR

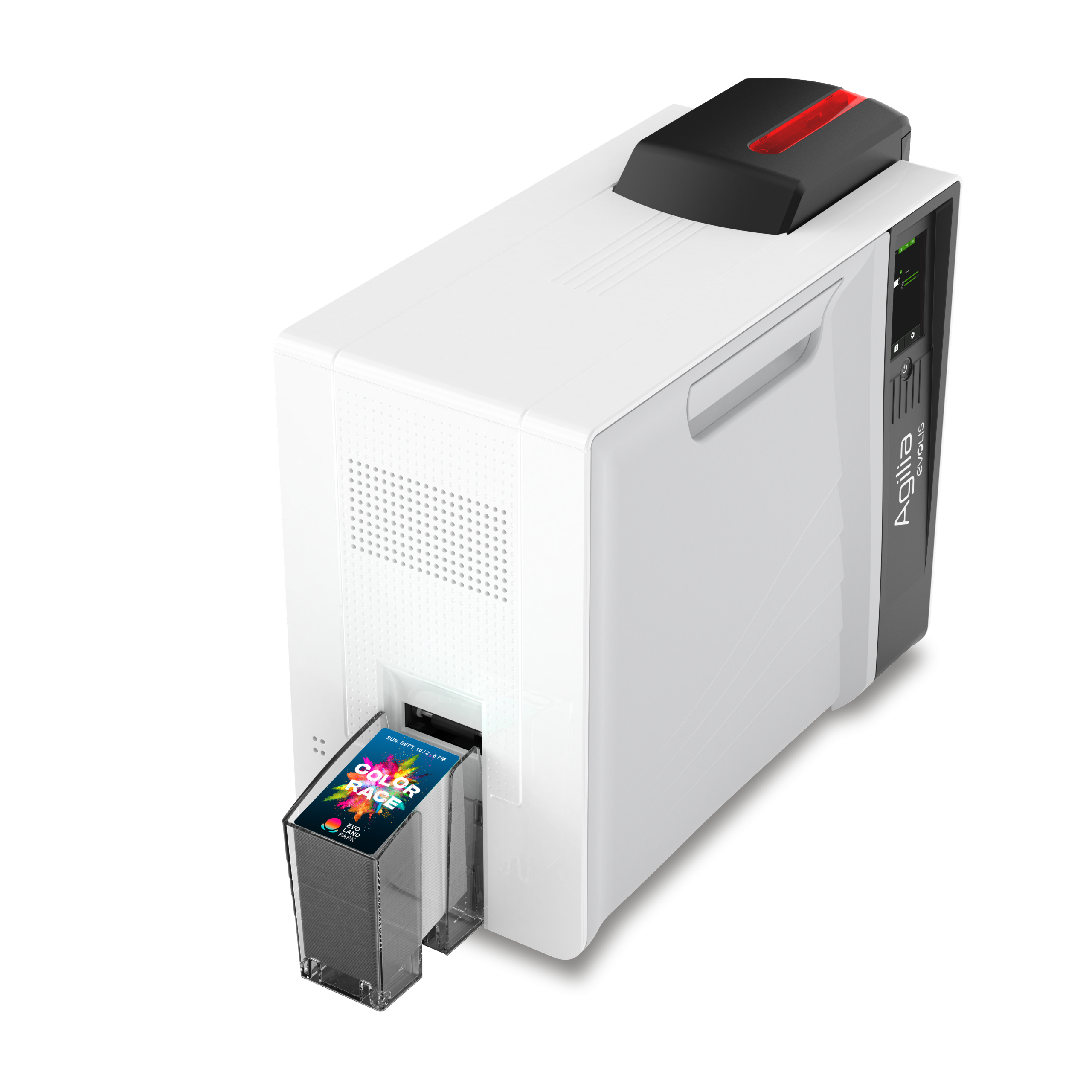

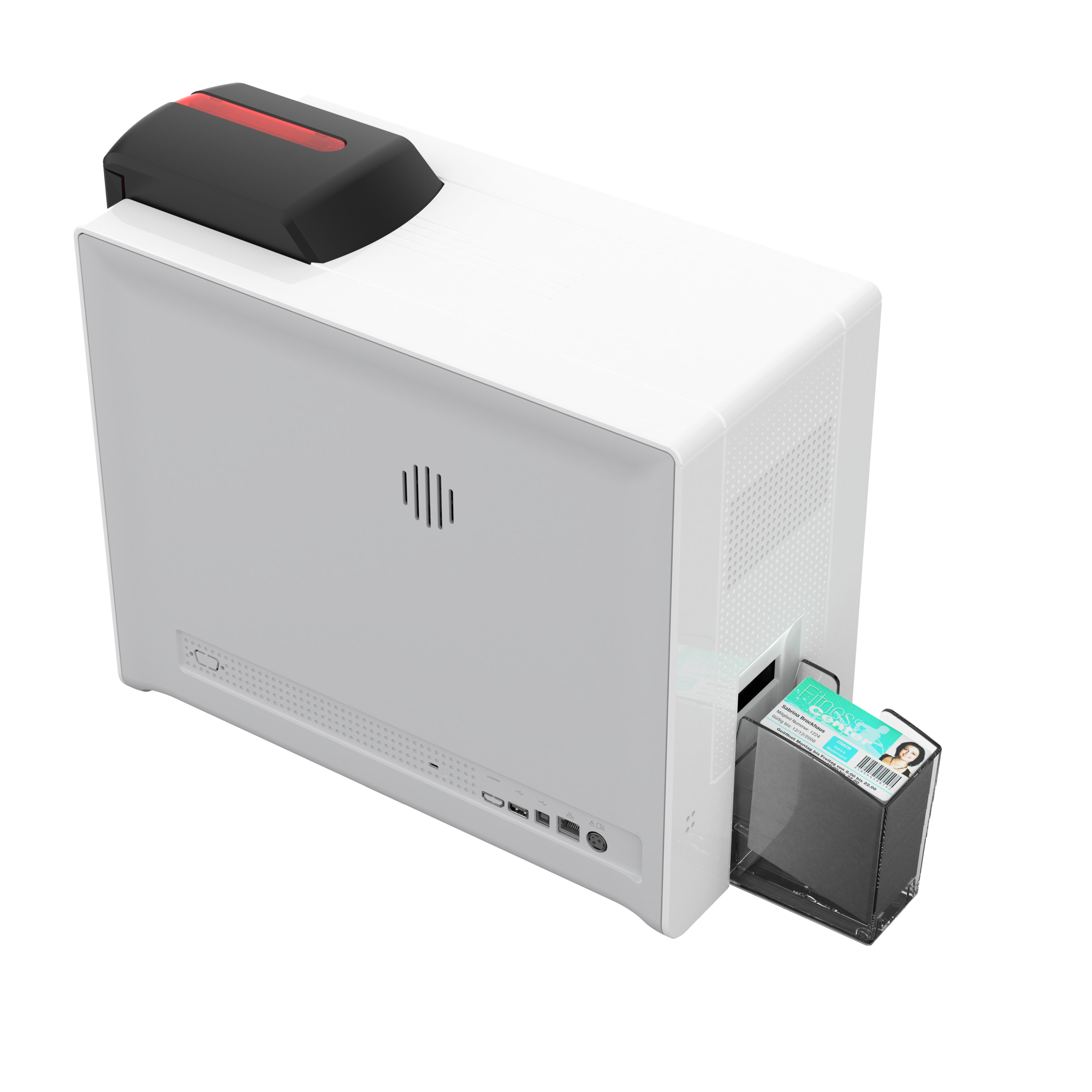

Agilia’s retransfer technology ensures that your cards have a perfect aesthetic finish and provides a wide range of graphic personalization options. The technology allows printing beyond the edge, with a high definition print resolution of 600 dpi. You can adjust colors via color profile, and printing is possible on thickness ranging from 30 mil to 50 mil. The printer features an LCD panel with a display of QR code for operating assistance and comes with Evolis Premium Suite, which offers an optimized user experience on Windows and Mac (Linux available on request). You can even print from your smartphone or tablet.
